Ultrasonic Analyzer

LET OP: Aankopen verlopen via de App Store, controleer daar altijd de meest actuele prijs, compatibiliteit en andere informatie. Je hebt een actief Apple account nodig om apps te installeren.

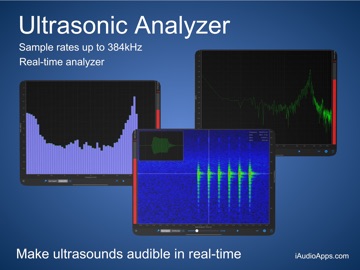

Ultrasonic Analyzer is a real-time spectrum, spectrogram, oscilloscope and octave RTA analyzer for your iPhone or iPad. It can give you a visual representation of many ultrasounds using a sampling rate up to 384kHz**. You have the opportunity to listen to transposed ultrasounds* and analyze them in real-time. For sounds normally impossible to hear you can also use slowed-down playback.
Ultrasonic Analyzer can be used to analyze the calls of different animals (bats, dolphins), measure the frequency response of hi-end audio equipment or ultrasonic sensors. You can also analyze any imported audio file into a spectrogram context.

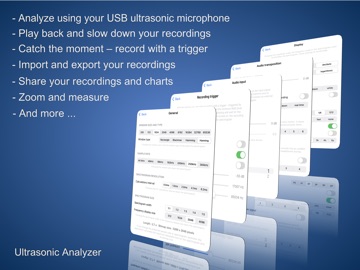

Features

- Sampling rates: 44.1kHz, 48kHz, 96kHz, 192kHz, 200kHz, 250kHz, 384kHz
- Listening to transposed ultrasounds during recording feature*
- Spectrogram analyzer (color, black and white)
- Spectrum analyzer
- Oscilloscope (full FFT window size)
- Octave RTA analyzer: bands - full, 1/3, 1/6, 1/12 (RMS values)
- Max/min Octave RTA values
- SPL Meter (dBFS)
- Fast real-time response
- Variable frequency resolution of the spectrogram
- Variable between FFT computations time interval (available smaller than 1ms!)
- Fast Fourier Transform (FFT)
- Window sizes: 256, 512, 1024, 2048, 4096, 8192, 16384, 32768, 65536
- Recording trigger (triggered by frequencies in the specified frequency band)
- Zoom and pan all charts
- Measure values in all charts
- Playback back analysis (just tap on the spectrogram and play)
- Transposition during playback
- Slow down playback – transpose required octaves down
- PIP (picture-in-picture), allows the simultaneous analysis on the spectrogram chart and Second chart: Octave RTA, Spectrum or Oscilloscope
- Audio input can be supplied via the built-in microphone and an external microphone (via the USB camera adapter or through the iPhone/iPad dock connector – Core Audio compliant devices)
- Sharing charts and audio recordings (through mail, social networks, clipboard)
- Exporting to the iOS Document Browser (supports iCloud): audio recordings (wav) and image charts (png)
- Importing audio files from another application or from the iOS Document Browser (supports iCloud)
- Many formats supported for audio file import: wav, caf, aac, mp3
- Automatic conversion from other sampling rates for imported files
- Frequency scale: linear and logarithmic
- Amplitude scale: linear and logarithmic SPL/RMS (dBFS)
- SPL meter weighting: dBZ - linear
- Variable spectrograms length (depends on set resolution)

Tested with (via the USB camera adapter):

- Dodotronic Ultramic200K, Ultramic250K, Ultramic384K
- Pettersson M500-384
- Avisoft-UltraSoundGate 116Un

Make sure you use the latest iOS update.

*Use an external microphone with ultrasonic capabilities through a USB camera adapter or through the iPhone/iPad dock connector.
**For real-time ultrasonic analysis use an external microphone with ultrasonic capabilities through a USB camera adapter or through the iPhone/iPad dock connector. You can also import files recorded on an external device.

--

Ultrasonic Analyzer van Pawel Krzywdzinski is een app voor iPhone, iPad en iPod touch met iOS versie 12.4 of hoger, geschikt bevonden voor gebruikers met leeftijden vanaf 4 jaar.
