SignalScope X

LET OP: Downloads verlopen via de App Store, bekijk daar altijd de meest actuele prijs, compatibiliteit en andere informatie. Je hebt een actief Apple account nodig om apps te installeren.

SignalScope X offers a range of powerful measurement and analysis tools to enhance your productivity in areas such as acoustics (sound and vibration), audio, electronics, and electroacoustics.

SignalScope X includes a free oscilloscope tool. SignalScope X makes additional tools available via 3 tiers of subscription-based tool sets to meet your basic, advanced, and professional needs. Each subscription works on your iPhone, iPad, and Mac.

Features:
- Analyze signals coming from the Mac or iOS device’s current audio input device.
- Assign engineering units to your input signals and calibrate external transducers for accurate measurements.
- Assign input channel units and sensitivities for individual USB Audio devices.
- Connect lab-grade microphones and sensors to your Mac, iPad, or iPhone with suitable interface hardware for precise measurements.
- SignalScope offers enhanced support for select hardware from Digiducer, The Modal Shop, and miniDSP.
- Nominal acoustic sensitivities included for iPhone and iPad built-in microphones, voltage sensitivities for headset input (including the standard Lightning-to-headset adapter).

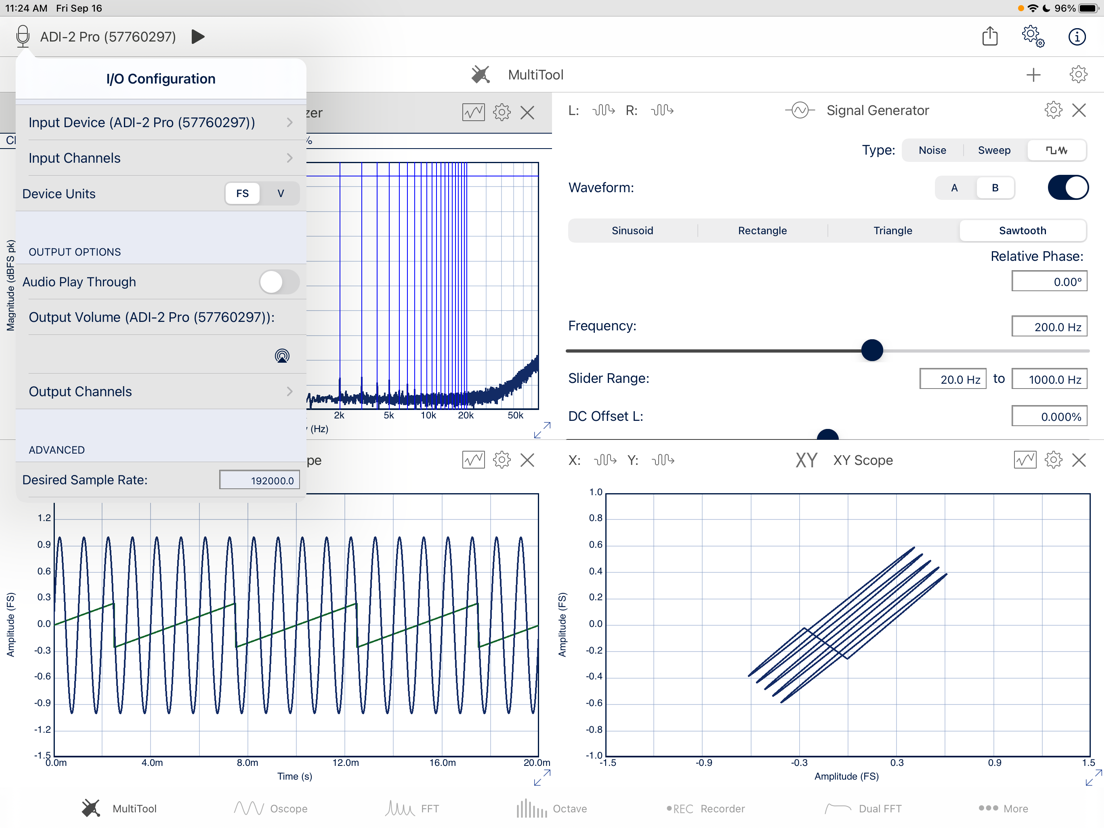

- Manually switch between available audio input and output sources.
- Load microphone frequency response data (FRD) and apply frequency response correction (FRC) to FFT-based measurements.
- Manually adjust audio sample rates, even up to 768 kHz, depending on hardware.
- Save acquired measurement data to CSV, TXT (tab-delimited), or MAT files.
- Save high-resolution analyzer display images to PDF files.
- Retrieve your data files from your device via Files (iCloud Drive), iTunes File Sharing, or through a web browser on another device. Files may also be opened in other compatible apps (e.g. Mail, Notes, Numbers, Dropbox, etc).

Basic Tools:
- Oscilloscope

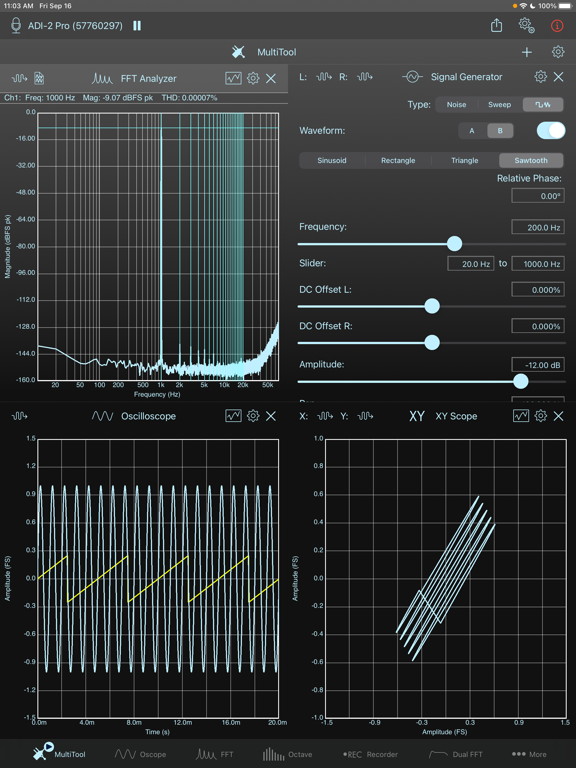

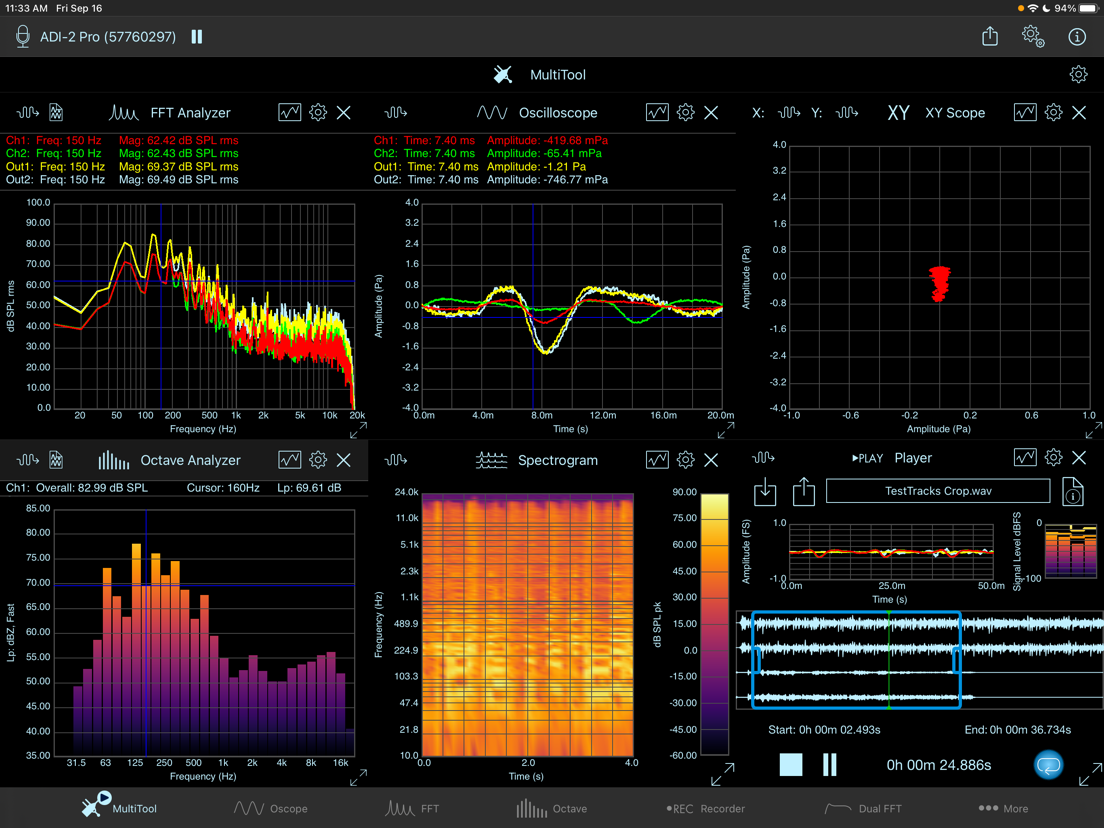

- MultiTool - Powerful data monitoring and project management (Add 2-6 subtools, depending on screen size, and save configurations for easy recall at a later time.)
- FFT Analyzer - Spectrum analyzer with user-settable frequency limits and input triggering
- 2D Real-time Spectrogram Analyzer
- XY Plotter - Create Lissajous curves or visualize your stereo mix
- Stereo Signal Generator

Advanced Tools: (Advanced Tool Set also includes basic tools)
- 3D Real-time Spectrogram Analyzer - Stunning live visualization of incoming data
- Octave-band Analyzer - Whole and 1/3-octave RTA

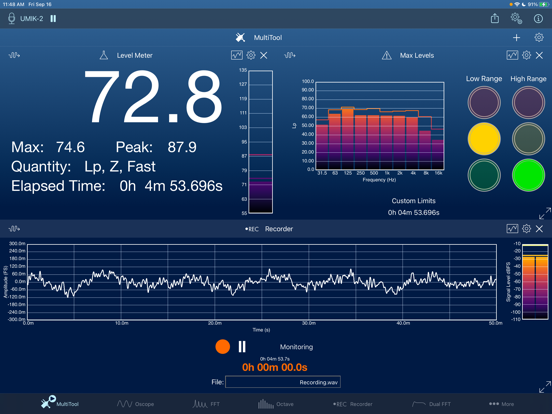

- Level Meter - Overall signal level meter
- Max Levels - Traffic-light-style monitoring
- Noise Dosimeter
- Data Recorder - Stream up to 8 channels to WAV, AIF, or CAF audio files

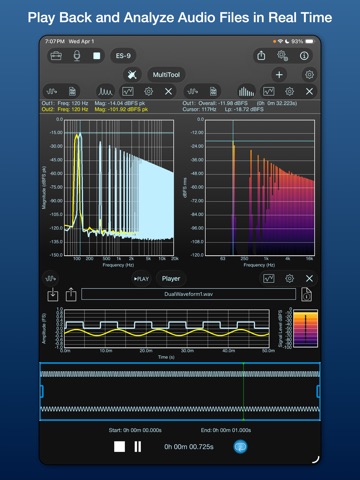

- Multi-channel Audio File Player - Analyze pre-recorded data

Pro Tools: (Pro Tool Set subscription includes all tools)
- Dual-channel System Analyzer (Dual FFT analysis with support for Frequency Response Magnitude/Phase, Phase Delay, Group Delay, Coherence, Impulse Response and Cross-Correlation)

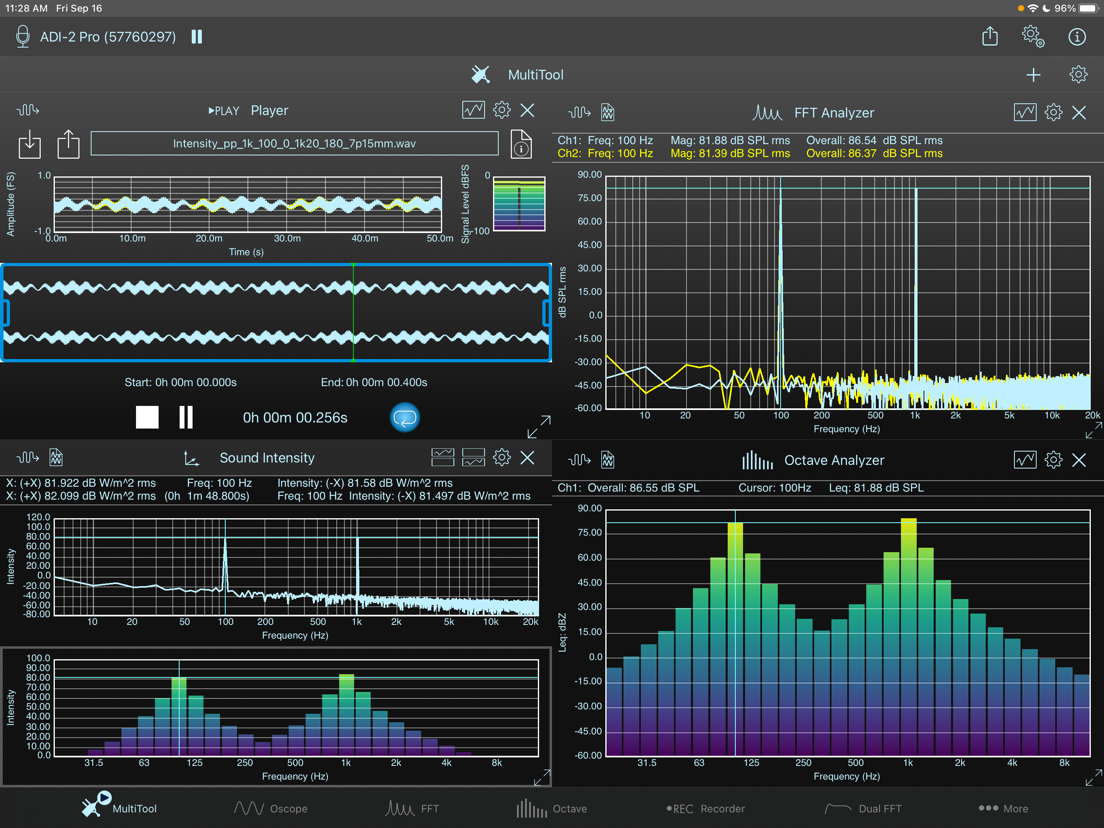

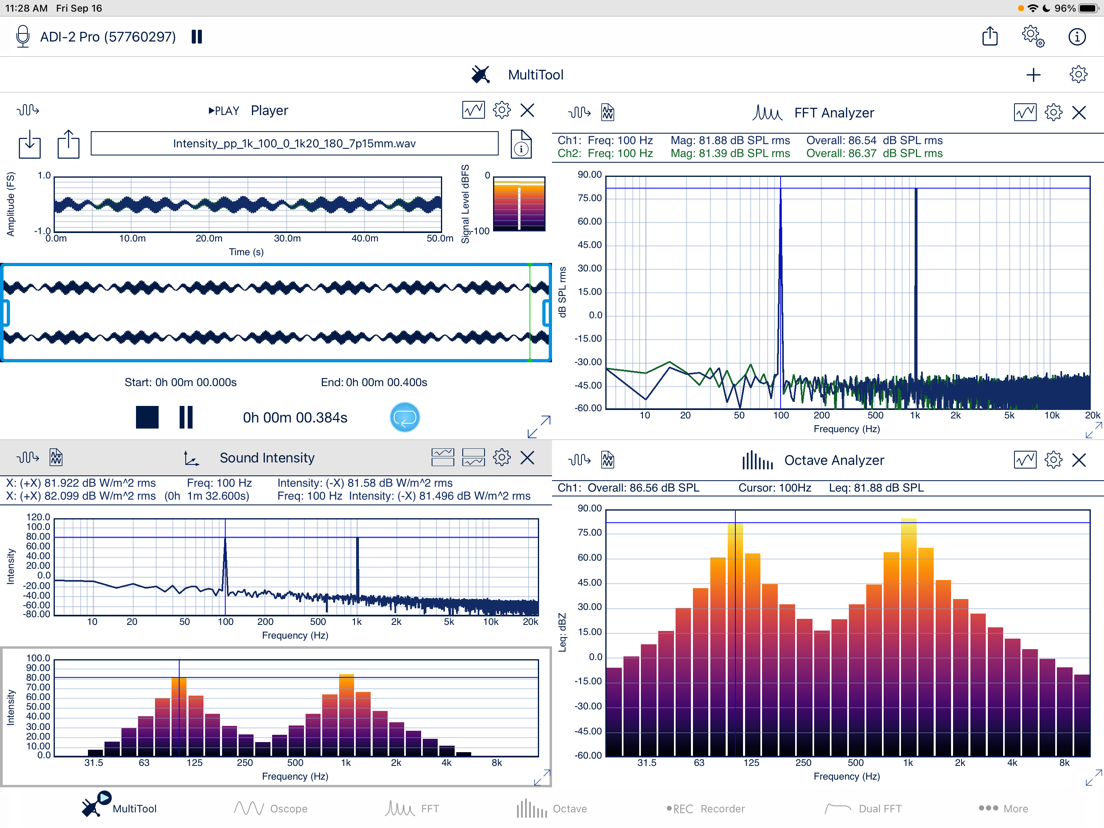

- Sound Intensity Analyzer - With a suitable p-p probe, measure sound intensity and acoustic particle velocity spectra (narrowband and whole or 1/3-octave bands) and time waveforms.

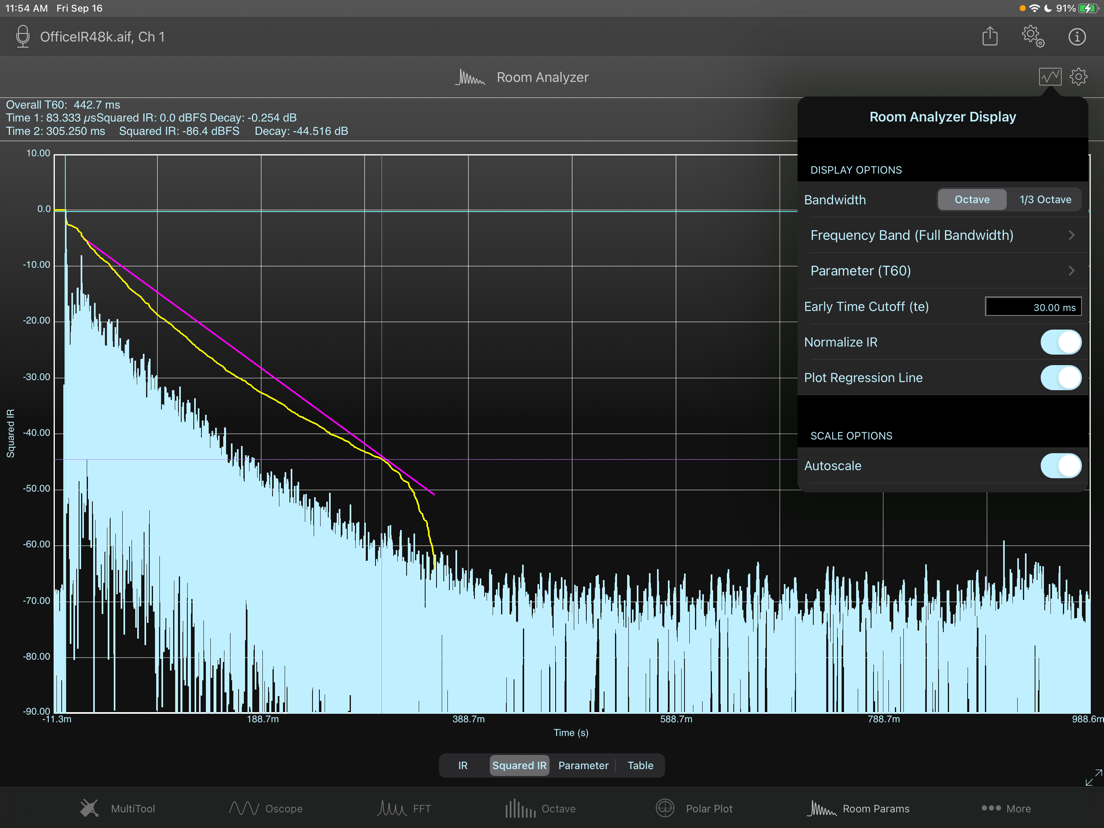

- Room Acoustics Analyzer (T20, T30, T60, nonlinearity, EDT, Early Decay Time, Center Time, Clarity, and Definition in various frequency bands, adjustable Schroeder integration limits)

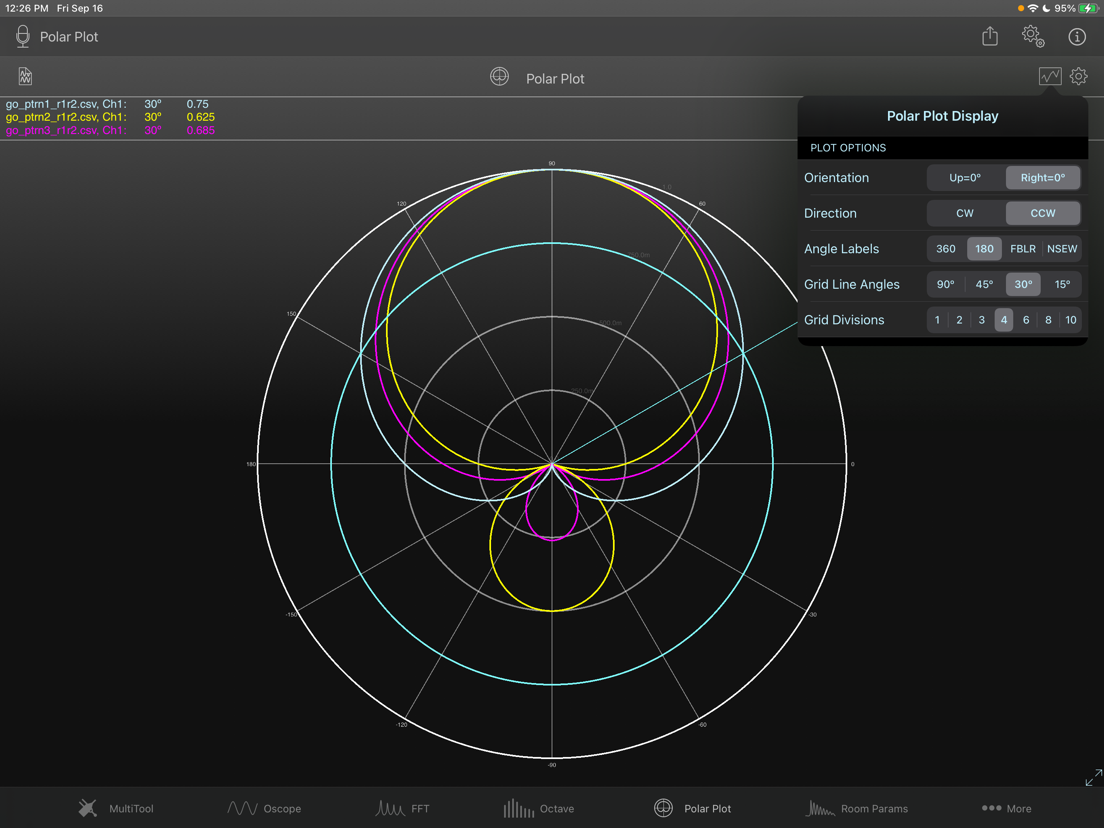

- Polar Plot - Generate beautiful high-resolution plots of polar data.
- STI/PA Analyzer - Direct STI and STIPA measurements

Additional Pro Features:
- User-defined custom metadata in saved audio and data files
- Data logging support in the Level Meter, Octave Analyzer, and Noise Dosimeter
- Percentile exceeded sound levels in the Level Meter and Octave Analyzer
- NC, RNC, and NR references curves, NC, SIL, and NR values in the Octave Analyzer
- Voltage decibel levels can be displayed in dBV or dBu
